Wiring loom woes help needed

[Berti44]

Hi, decided to delve into my box of bits again realising I’ve taken on more than I should!
Does anyone have any detailed photos of their wiring loom as fixed to the frame and attached to the various components?
I cannot see a second connector from the loom to connect to the CDI. Any ideas. Problem is various bits are missing making it harder to establish what’s what.

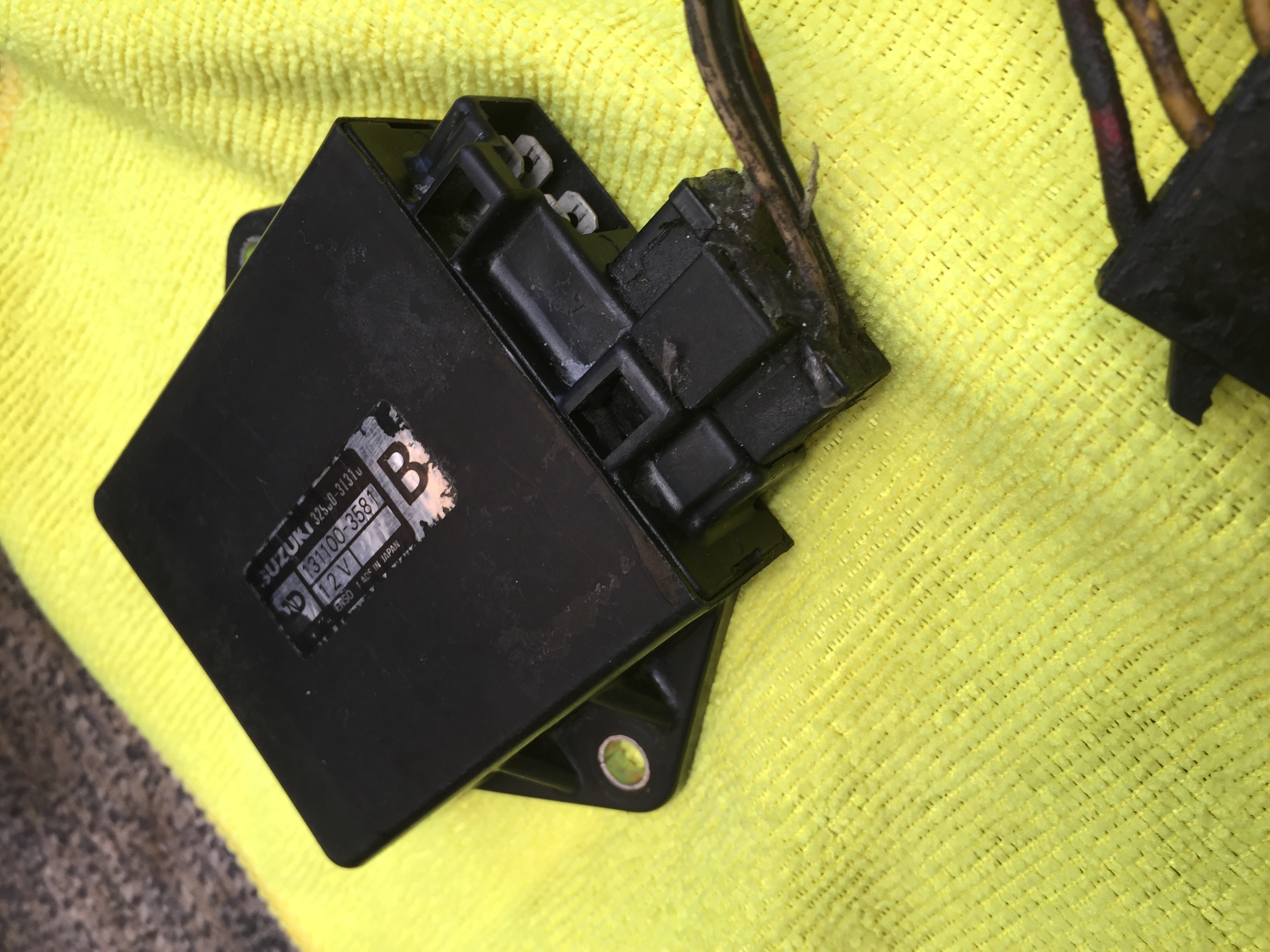

CDI to loom

I see photos in the gallery of someone building their pop up from scratch. Hope you can help. Thanks

[Kryten]

Hi Bertie

I have pinged you a pm.

I think you are looking for the connector to the pick-ups on the engine, the ones my brother on his ES smeared into some Belgian tarmac back in the dim and distant past.

Will have a look next week when I'm home.....

.......unless a Pop Up owner on here can help out.

[fossie]

Yep ignition looking for a connector with green and blue wires I believe...shouldn't be hard to suss , but I will take a picture in the week possible We'd news day when I MOT the hyprocyte Kat.

[Berti44]

Hi everyone thanks for your help. Cheers.
