Popup carbs

[Kryten]

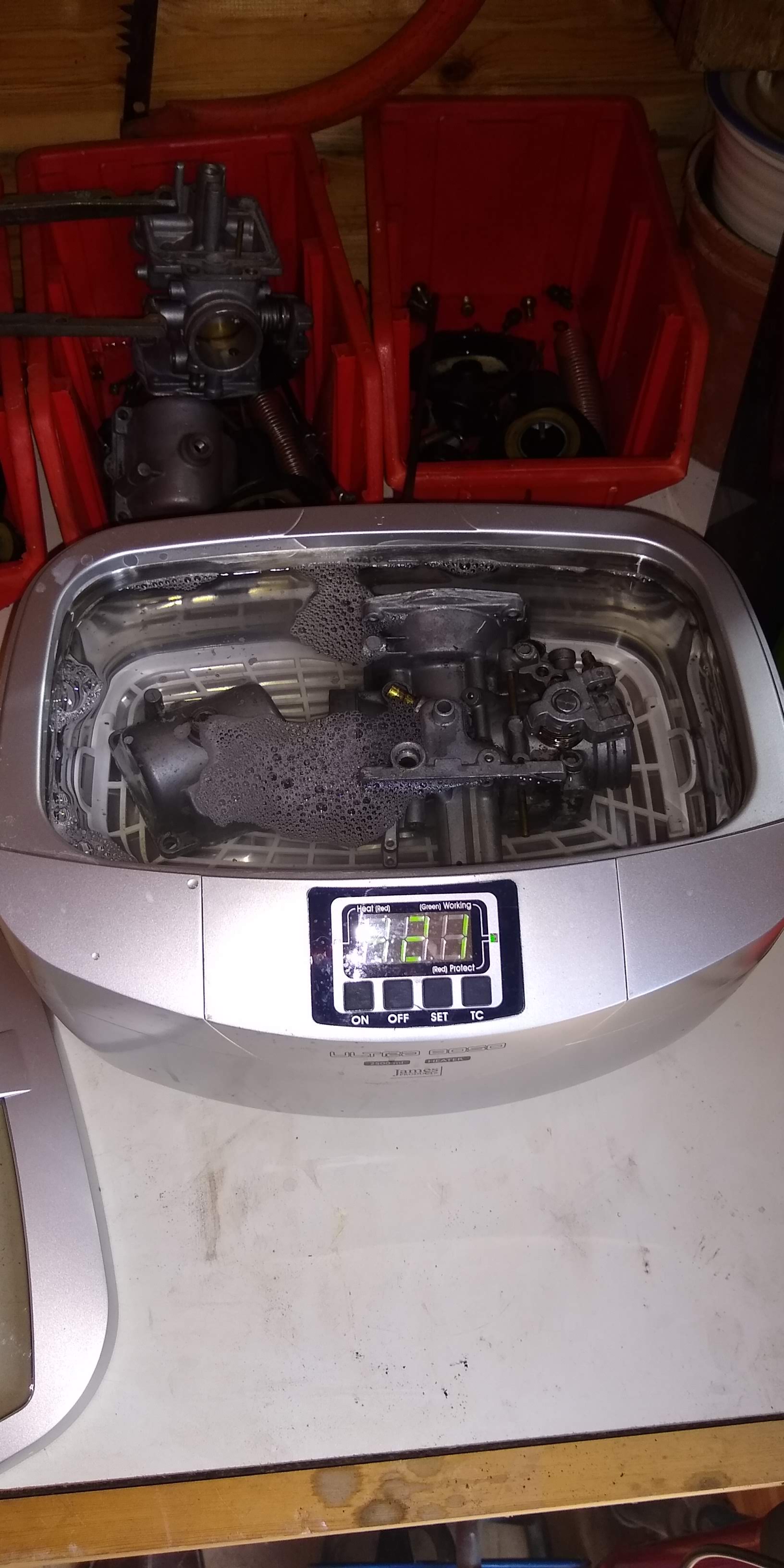

Used this to clean Fred61’s Pop Up carbs earlier this year.

Think it’s a 2500ml version. Got it from Maplin’s a few years ago.

[Kryten]

Here’s the thread from earlier this year...

Near the end of page 1 is my considered opinion of size.....

viewtopic.php?f=9&t=8243

[SamK]

It’s arrived!!!





Earlier than expected.. carbs are still on the bike.

Could always use it as an urn.. came with a tea strainer

[Lexdba]

Good purchase, now get some good additive! Take your pick but take the time to read. Some additives react with alloys
https://www.reichelt.com/de/en/ultrason ... edaa3ac239

[Uncle Bob]

After trying various cleaners some fairly expensive, after a post by Kryten regarding this, I went back to using just washing up liquid and PaulD pitched in with also adding a squirt of lemon juice (not sure if it makes a different but there's some in the fridge and it's a long time to pancake day so why not )

I don't tend to use the supplied plastic tray (can see that in Kryten's one above) as it does state this can reduce the cleaning, I just throw everything in and fish out with my hands! I do use a rubber bung in the drain hole at the bottom so nothing goes down there.

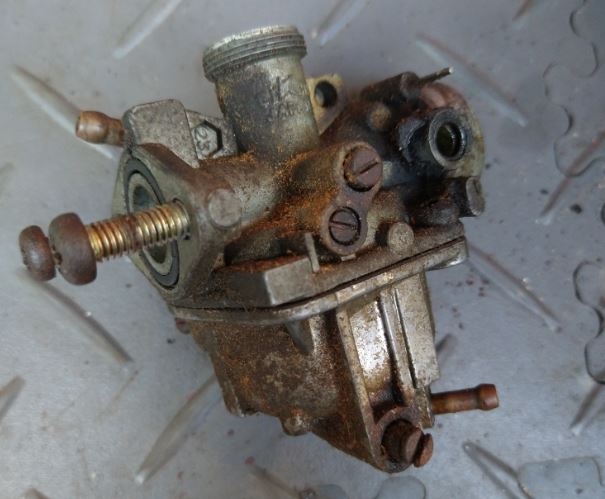

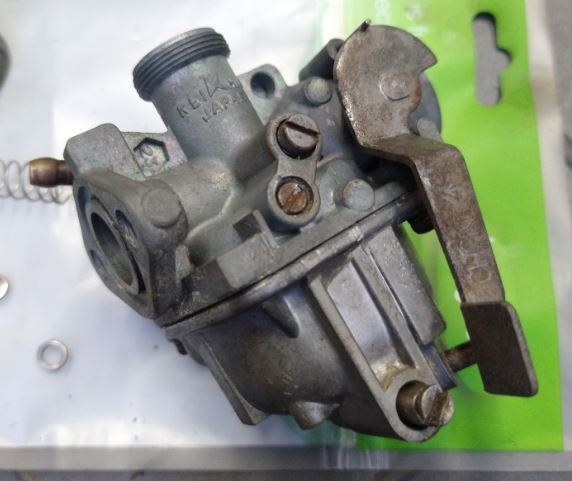

Here's a PC50 carb i recently did with just those, before and after - mine does have a heater and I think it was at about 45C.

I haven't found anything that makes them shiny or as good on the outside as vapour blasting, but I'm happy with that.
All the jets were fine as well, I do a full stripdown and once done a quick blast with some brake cleaner (see below) then blow out with the airline.

Another thing I have found as a pre-clean if there is residue fuel / gum / varnish) in the carb etc is CRC Gasket Remover (had some for actual gasket removal but gave it a try and it worked well
https://www.motoelectrical.co.uk/crc-sh ... a-2100375/
the CRC Brake Clean Pro is really good as well, supplier is not to far from me so I normally pickup in bulk for me and friends
https://www.motoelectrical.co.uk/crc-sh ... a-2100040/

UB

[SamK]

After another thorough clean and ultrasonic bath.. still the same problem.

And then, as if by magic, ibrakeformoose lists a popup for breaking

A few weeks time and I’ll have a whole other set of carbs to play with....

[KeKat]

I use Profi Fuel Max Carb Cleaner . It works.

[KeKat]

To make the outside of the carbs look good use machine mart aluminium cleaner.

[GSF34058]

Apologies for hijacking this thread, but where do you folk get carb rebuild gasket and O ring kits from in the UK?

I have taken the carbs off my 1,000 because it runs horribly on tick over and at low speeds. I have found someone locally who can ultrasonically clean them, but he suggested getting a rebuild kit before he starts so that they are not lying around in bits for ages waiting for parts.

I have had a look at NRP carbs, but they don't do much. Do I have to order everything, part by part, from Suzuki dealer? Or are there other options?

Any advice gratefully received.

Thanks, David.

[fossie]

Phone Andy at NRP ,,rather than trying the website.
